Used pharmaceutical freeze dryer

Different Parameters, Different Price.
Our staff will give you the most suitable quote.

Introduction

The vacuum freeze-drying machine (referred to as the freeze-drying machine) is a device for carrying out the freeze-drying process. Freeze-drying is a process where a substance or solution is frozen and dried at low temperatures. By freezing the water-containing substance or solution in a sealed container into ice (in a solid state), and then heating it in a vacuum environment, the water in the water-containing substance or solution is removed.

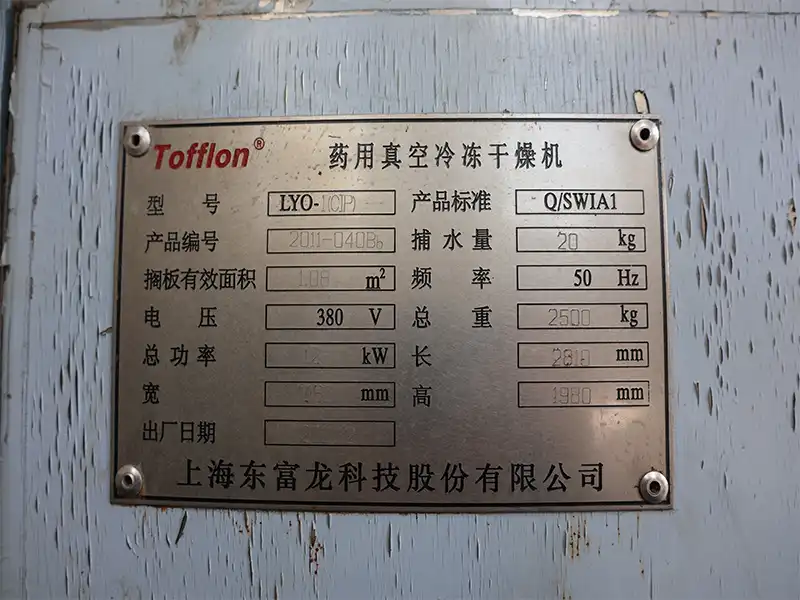

Specification

Item	Specification
Equipment Name	Pharmaceutical Vacuum Freeze Dryer
Brand	Tofflon
Model	LYO-1(CIP)
Product Standard	Q/SWIA1
Product Serial Number	2011-0408b
Effective Shelf Area	1.08 m²
Water Catching Capacity	20 kg
Voltage	380 V
Frequency	50 Hz
Total Power	12 kW
Total Weight	2500 kg
Length	2810 mm
Width	1050 mm
Height	1980 mm

Product Features

The elegant appearance of medical machinery, compact integrated design, and portable transportation;
Equipped with automatic defrosting for the condenser and automatic sealing for vials, without steam sterilization disinfection function;
Flexible process formula design, users can customize 12 steps during the freeze-drying stage, and make real-time adjustments to the freeze-drying process formula during the experiment, meeting the process development requirements for various products;
Fully automatic operation, with a user-friendly human-machine interface design, simple and easy to understand;
Adopting a stable SCADA (Data Acquisition and Supervisory Control) standard modular system, enabling data acquisition, analysis, recording, and automation of the freeze-drying process;
Equipped with three control modes: manual, automatic, and semi-automatic. It also includes functions such as electronic signature, electronic records, audit tracking, and permission management, meeting the FDA 21 CFR PART 11 requirements.
