Used Tofflon vacuum freeze dryer2
Different Parameters, Different Price.
Our staff will give you the most suitable quote.
- Year2010.08
- Brand: Tofflon
- weight: 4200 Kg
- size: 4200mm x 1300mm x 2870mm
Introduction
This is a pilot-scale freeze dryer produced by Dongfulong, featuring CIP (in-situ cleaning) function. It is mainly used for vacuum freeze drying of vaccine and protein drugs and other materials in the pharmaceutical industry to preserve the active ingredients of the materials.

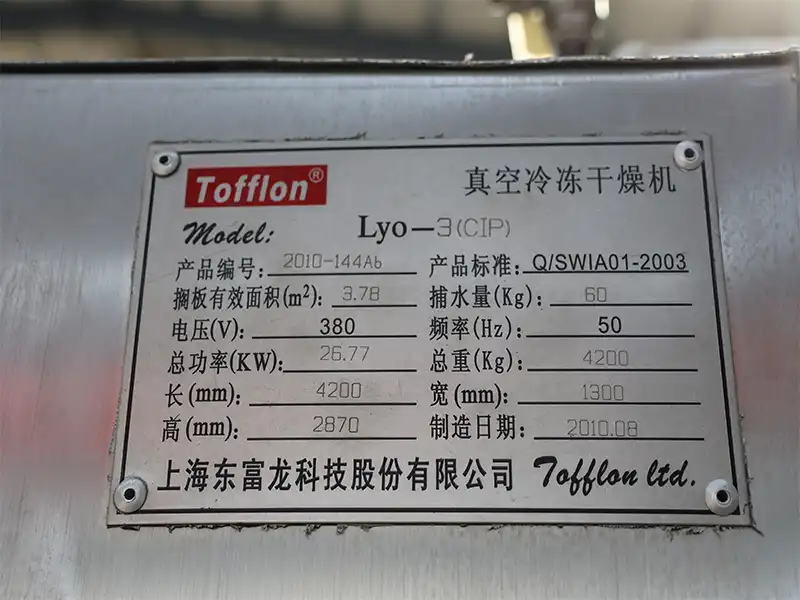

Specification
Item | Content |
Equipment Name | Vacuum Freeze Dryer |
Brand | Tofflon (东富龙) |
Model | Lyo-3 (CIP) |
Product No. | 2010-144Ab |
Product Standard | Q/SWIA01-2003 |
Effective Shelf Area | 3.78 ㎡ |
Water Capture Capacity | 60 kg |
Voltage | 380 V |
Frequency | 50 Hz |
Total Power | 26.77 kW |
Total Weight | 4200 kg |
Length | 4200 mm |
Width | 1300 mm |
Height | 2870 mm |
Features
The effective area of the shelves is 3.78㎡, the catchable water volume is 60kg, suitable for the freeze drying needs of small batches of pharmaceutical materials. The total power is 26.77kW, with stable temperature control and vacuum control capabilities.

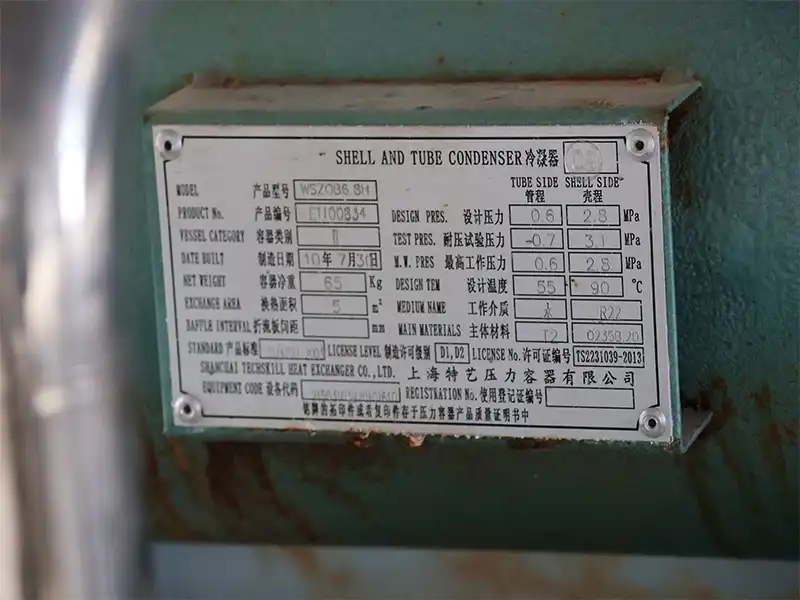

Condenser Specification
Item | Tube Side | Shell Side |
Model | WSZ086.8H | – |
Product No. | E1100834 | – |
Vessel Category | Class I | – |
Date Built | July 30, 2010 | – |
Net Weight | 65 Kg | – |
Heat Exchange Area | 5 m² | – |
Baffle Interval | / mm | – |
Product Standard | NB/T47012-2010 | – |
License Level | D1, D2 | – |
License No. | TS2231039-2013 | – |
Manufacturer | Shanghai Techskill Heat Exchanger Co., Ltd. | – |
Equipment Code | 21503103020101610 | – |
Design Pressure | 0.6 MPa | 2.8 MPa |
Test Pressure | 0.7 MPa | 3.1 MPa |
Maximum Working Pressure | 0.6 MPa | 2.8 MPa |
Design Temperature | 55 °C | 90 °C |
Medium Name | Water | R22 |
Main Materials | T2 | 0235B-20 |
