Used Flottweg (decanter)-Z53-4 454
Different Parameters, Different Price.
Our staff will give you the most suitable quote.
- Equipment Type: Horizontal Screw Decanter Centrifuge
- Model: Z53-4/454 (Flottweg Z Series Model)
- Year of Manufacture / Serial Number: 2004, Serial Number 007.364.08
- Place of Origin: Germany
- Main drive motor: 30~45 kW
- Screw drive motor: 11~15 kW
Introduction
Flottweg Z series model, manufactured in Germany, features an AISI 316 stainless steel drum and an anticorrosion-treated frame. Its main drive motor power ranges from 30 to 45 kW. It is mainly used in scenarios such as municipal sludge dewatering, solid-liquid separation in food processing, and pretreatment of chemical wastewater.
Specification

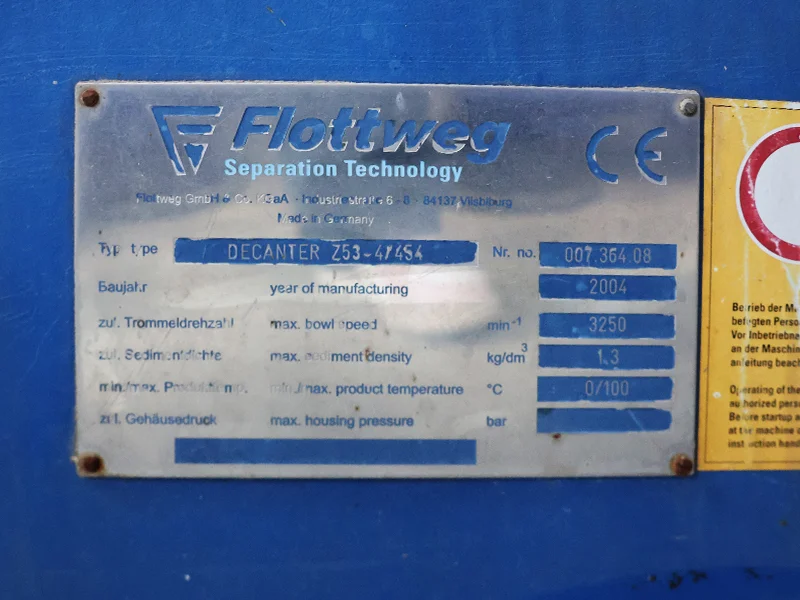

Item | Details |
Manufacturer | Flottweg Separation Technology |
Type | DECANTER Z53-4/4S4 |
Serial Number (Nr. no.) | 007.364.08 |
Year of Manufacturing | 2004 |
Max. Bowl Speed (zu. Trommel Drehzahl) | 3250 min⁻¹ |
Max. Solids Density (zu. Feststoffdichte) | 1.3 kg/dm³ |
Max. Product Temperature (max. product temperature) | 0/100 °C |
Drum Diameter | 530 mm |
Drum Length | 2150 mm (Length-to-diameter ratio ≈4.06) |
Maximum Speed | 3250 rpm |
Separation Factor | ≈2800 G |
Maximum Solids Density | 1.3 kg/dm³ |
Maximum Product Temperature | 0~100°C |
Processing Capacity | ≈10~15 m³/h (e.g., municipal sludge, subject to material type) |
Differential Speed | 3~50 rpm (adjustable) |
Bowl & Screw Material | AISI 316 stainless steel (wear-resistant coating optional) |
Overflow Housing Material | AISI 316 stainless steel |
Frame | Anticorrosion treatment |
Drum Diameter | 530 mm |
Application Fields
Primarily used in scenarios such as municipal sludge dewatering, solid-liquid separation in food processing, and pretreatment of chemical wastewater, suitable for continuous separation of materials with medium to high solid content.
