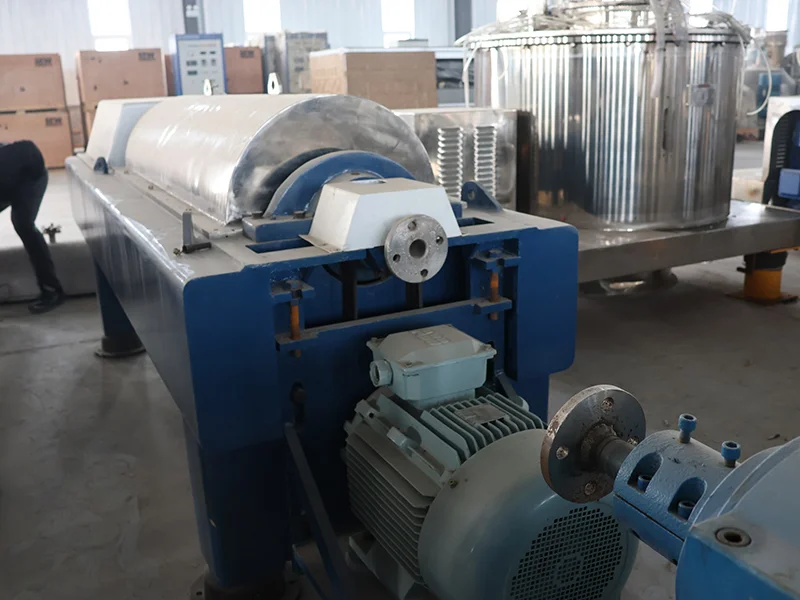

Used Haishen Horizontal Screw Centrifuge LWD430-N

Different Parameters, Different Price.
Our staff will give you the most suitable quote.

Introduction

Designed specifically for medium to high difficulty solid-liquid separation scenarios, it takes into account the requirements of “large processing capacity + high precision separation”, and is suitable for various materials such as municipal sludge, industrial wastewater, food/pharmaceutical slurries, etc. It is one of the representative models of domestic mid-to-high-end horizontal screw centrifuges.

Specification

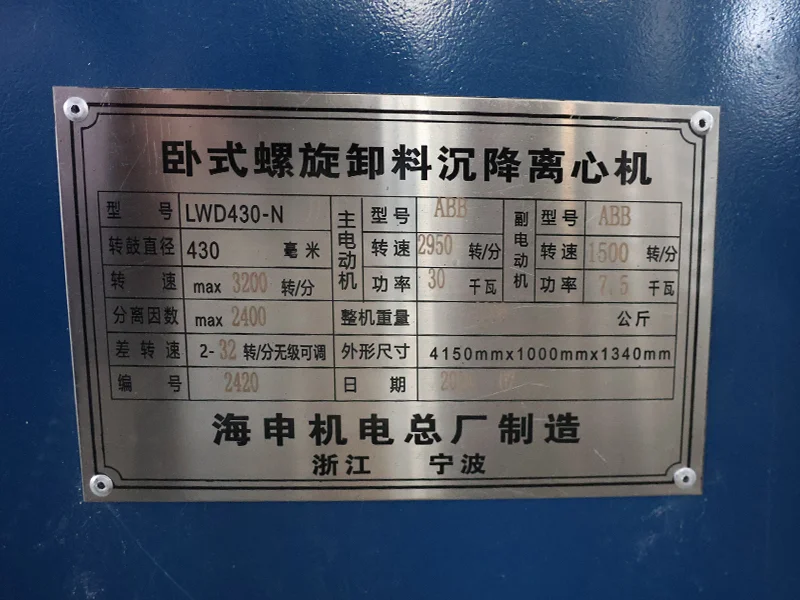

Category	Specific Parameters
Basic Specifications	Model: LWD430-N; Bowl Diameter: 430mm
Core Performance	Max Speed: 3200 rpm; Max Separation Factor: 2400; Differential Speed: 2-32 rpm (stepless adjustable)
Power System	Main Motor (ABB): 30kW/2950 rpm; Auxiliary Motor (ABB): 7.5kW/1500 rpm
Structural Dimensions	Overall Dimensions: 4150mm × 1000mm × 1340mm; Total Weight: ~7-8 tons (not marked, typical for same specification)

Product Core Features

Military-grade stable design adopts a dynamic balance and shock absorption structure, with vibration value ≤ 1.5mm/s and continuous operation noise ≤ 85dB. It is suitable for 24-hour uninterrupted production scenarios.
Efficient separation configuration features a long-to-diameter ratio of ≥ 4 and a large cone angle drum. The material stays in the separation zone for 30% longer, and the clarity of the clear liquid (SS ≤ 3%) and the moisture content of the slag phase (60%-65%) are both superior to those of ordinary models.
Corrosion-resistant and wear-resistant material components in contact with the materials use 316L / duplex stainless steel, and the key parts (screw blades) are coated with hard alloy, suitable for high-salt, strong acid-base and other corrosive working conditions.
Intelligent automatic control system with PLC fully automated control, supporting differential speed, feed volume, and liquid layer depth real-time adjustment. It can be remotely monitored + fault alarm, achieving unmanned operation.

Typical Application Scenarios

Environmental Protection Field: Municipal sludge dewatering, separation of wastewater sludge from dyeing/electroplating industries;
Industrial Field: Recovery of chemical resin mother liquor, dewatering of mineral tailings;
Food/Pharmaceutical Industry: Clarification of fruit juice, solid-liquid separation of traditional Chinese medicine extract (in compliance with GMP standards).
