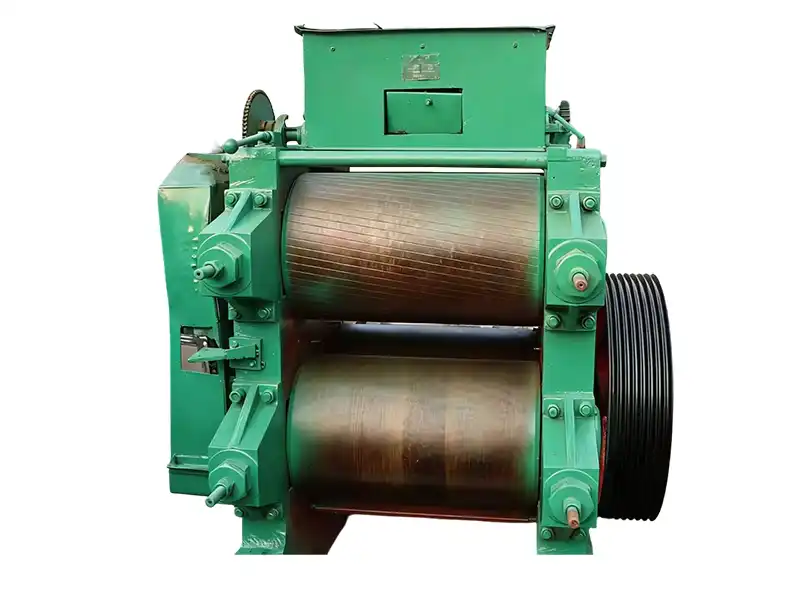

Double Pair Roller Flaker&hydraulic Oilseed Flaking Mill
Different Parameters, Different Price.
Our staff will give you the most suitable quote.
- Equipment Type: Double-pair roller oilseed flaking machin
- Manufacturer: Shanxi Changzhi Grain Machinery Factory
- Speed of Mainshaft: 200 r/min
- Motor Power: 30kW
Introduction

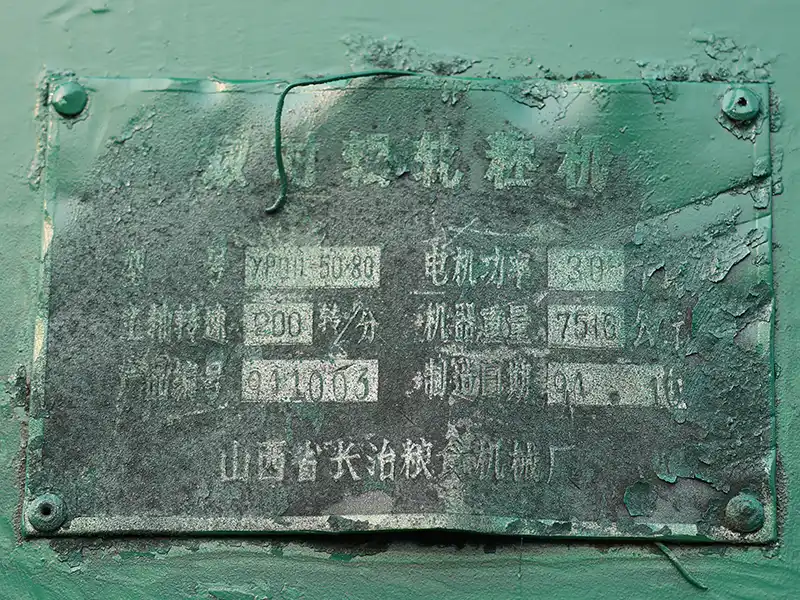

Double Pair Roller Flaker is the core equipment in the oilseed pre-treatment process. Here is a detailed introduction of the YPJ11-50×80 double-roller rolling die machine produced by Shanxi Changzhi Grain Machinery Factory.
Specification
Item | Details |
Equipment Type | Double-pair roller oilseed flaking machine (grain and oil processing pretreatment equipment) |
Model (YPJ11-50×80) | – “YPJ”: Abbreviation of “oilseed flaking machine” |
– “11”: | Series code |
– “50×80”: | Roller diameter (50mm) × effective length (80mm) |
Manufacturer | Shanxi Changzhi Grain Machinery Factory |
Speed of Mainshaft | 200 r/min |
Motor Power | 30kW |
- The core function of the rolling mill is to roll the pre-treated oil materials (such as soybeans, peanut kernels, rapeseed, etc.) into uniform thin sheets (germ sheets), with the aim of destroying the cell structure of the oil materials and increasing the contact area between the oil materials and the solvent, thereby enhancing the oil yield in the subsequent oil extraction / extraction process.
- The working principle of the double pair of rollers: The oil material is fed into the space between the two pairs of rollers that rotate in opposite directions. Through the squeezing and shearing action of the rollers, the granular oil material is rolled into uniform sheet-like pieces (the thickness of the sheet-like pieces can usually be adjusted to 0.3-0.5mm); The double pair of rollers design can achieve “secondary rolling of the sheet”, making the sheet thinner and more uniform, and meeting the processing requirements for high-oil-content oil materials.
Applicable Scenarios and Process Steps
It belongs to the oil pre-treatment process (located after “Cleaning – Drying” and before “Roasting – Oil Extraction / Extraction”), and is typically applicable to the following oil crops:
Soybeans, rapeseed, peanut kernels, cottonseed, and other common oil crops;
It is especially suitable for oil crops with a higher oil content (such as peanut kernels), as the extruded kernels can release the oil more fully.

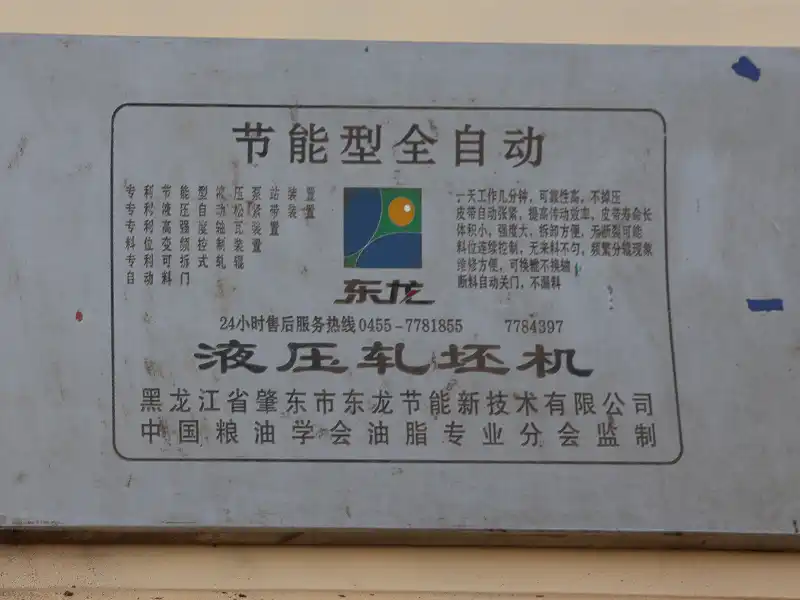

hydraulic Oilseed Flaking Mill
Energy-saving fully automatic hydraulic flaking mill is specifically designed for oil material pre-treatment, featuring “energy saving + fully automatic”. The key configurations include:Patented energy-saving hydraulic system, adjustable high-pressure, automatic control device;Patented detachable rolls, automatic material door structure, etc.;Features: high stability, automatic belt tensioning, continuous material level control, automatic door closing in case of breakage, etc.
