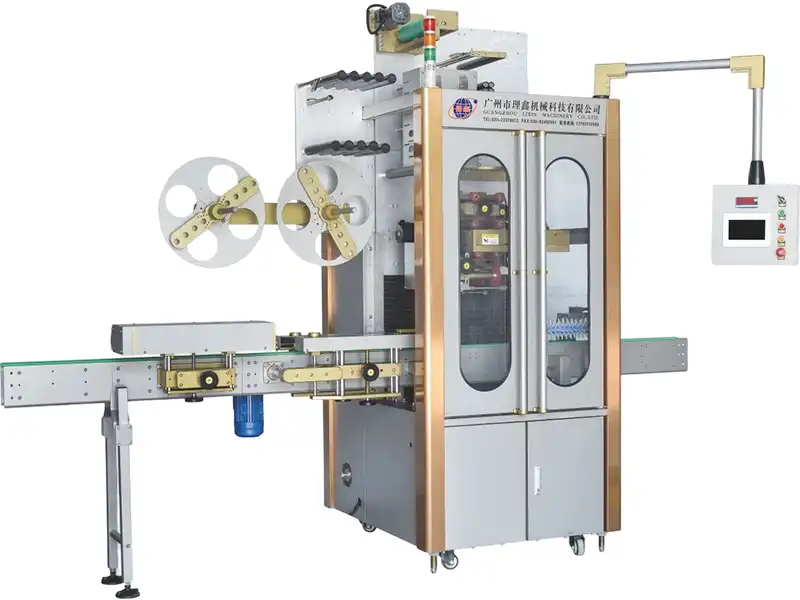

Trapping label machine
Different Parameters, Different Price.
Our staff will give you the most suitable quote.
- PRODUCTION NUMBER : 20151007 302AP
- MODEL: AP-400
- POWER SOURCE: 220 V

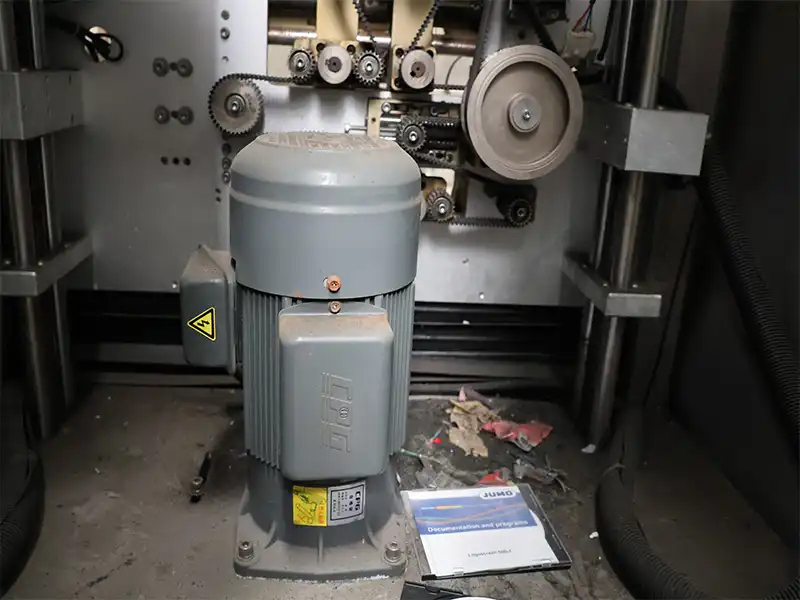

- MAIN MOTOR: 7 KW
Introduction
The 2003 model labeling machine is a successful innovation of mechanical principles and electrical control principles in the field of packaging equipment. Its basic labeling principle is as follows: When the bottle detection sensor detects the approach of a bottle and determines that continuous production is necessary, the bottle feeding screw starts to operate to push the bottle (the function of the bottle feeding screw is to separate bottles of unequal distances and initial speeds from each other into equal distances and initial speeds). The bottle enters the core unit of the labeling system. When the labeling sensor detects the approach of a bottle, it immediately transmits the information to the control center PLC, and through the PLC, it sequentially and continuously issues 4 instructions: label feeding, positioning, cutting, and shooting the label. When the shooting of the label is completed, the labeling process of one bottle is finished, and then it enters the label sorting and shrinkage unit.
Specification

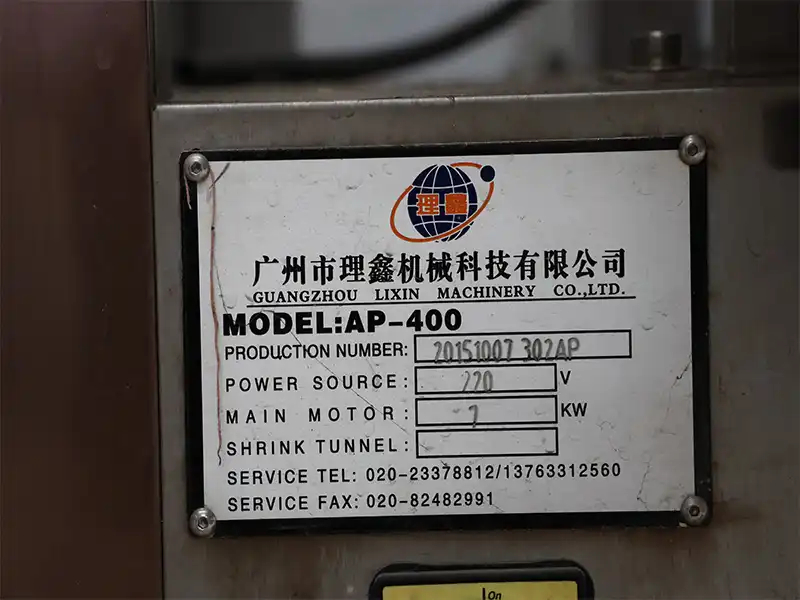

Manufacturer | GUANGZHOU LIXIN MACHINERY CO.,LTD |
MODEL | AP-400 |
PRODUCTION NUMBER | 20151007 302AP |
POWER SOURCE | 220 V |
MAIN MOTOR | 7 KW |
Technical Characteristics:
- High-speed and stable operation, long service life: Its unique ingenious and simplified design is truly outstanding in the industry. This unique design provides strong technical support for the high-speed operation of the label applicator. All components are of well-known brands, especially the electrical control system part. To be responsible to the users and one’s own reputation, all products used are from the relevant industrial control sector, which fundamentally ensures the quality and performance of the equipment. Additionally, its unique enclosed design not only protects the operator during operation but also provides good protection for the equipment system itself, significantly extending the service life of the equipment.
- Excellent safety performance: In the design process of the new label packaging machine, the concept of harmonious human-machine interaction was fully reflected. During the operation and production process of the equipment, it is always under a unique designed protection system. If any safety hazard is caused by improper human operation, the safety system will automatically detect it and immediately stop the operation. It can only resume after restoration and passing the inspection verification.
- Wide application range: Within the effective diameter range, regardless of whether the packaging material is circular, square or other irregular shapes, and regardless of whether it is made of glass or plastic, it can all be applicable.
- Low operating costs: Multiple bottles can be used with one machine, resulting in lower cost burden.
- Easy to change packaging materials: Adopting modular mold replacement design, each bottle uses a separate mold. Changing molds does not require any tools; only simple manual adjustments are needed.
