Used Shanghai SHIKOKU CSK Roof Carton Filling and Sealing Machine
Different Parameters, Different Price.
Our staff will give you the most suitable quote.
- Year：March 2003
- product capacity: 3000 boxes/hour
- type: CSK-530
Introduction
This equipment has a production capacity of 3,000 boxes per hour and can fill cartons of 250, 500, and 1,000 milliliters. It is suitable for filling products such as pure milk, yogurt, milk beverages, and plant-based cream. It is not suitable for hot filling.
Specification

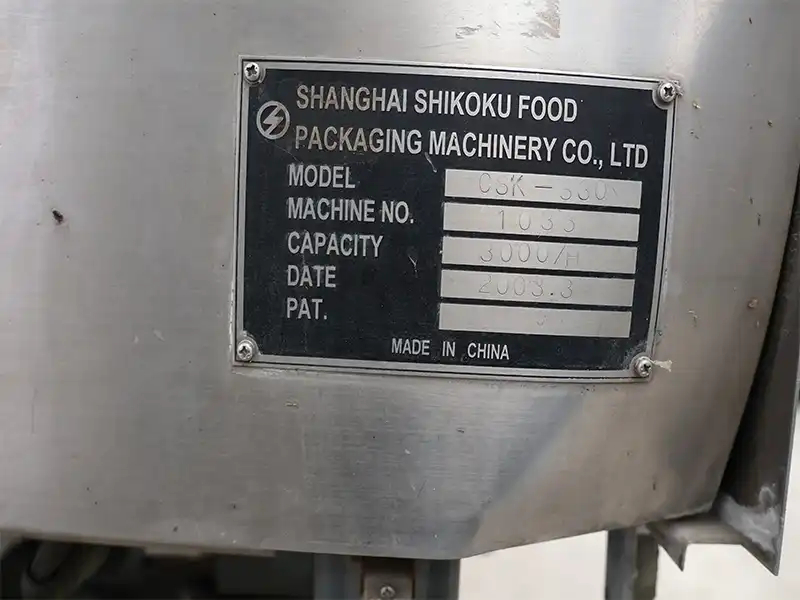

Item | Details |
type | CSK-530 |
No. | 1035 |
product capacity | 3000 boxes/hour |
date of manufacture | March 2003 |
origin | China |
Paper box conveying and forming unit unfolds and expands the folded roof box paper box, and complete the bottom pre-forming and conveying positioning.

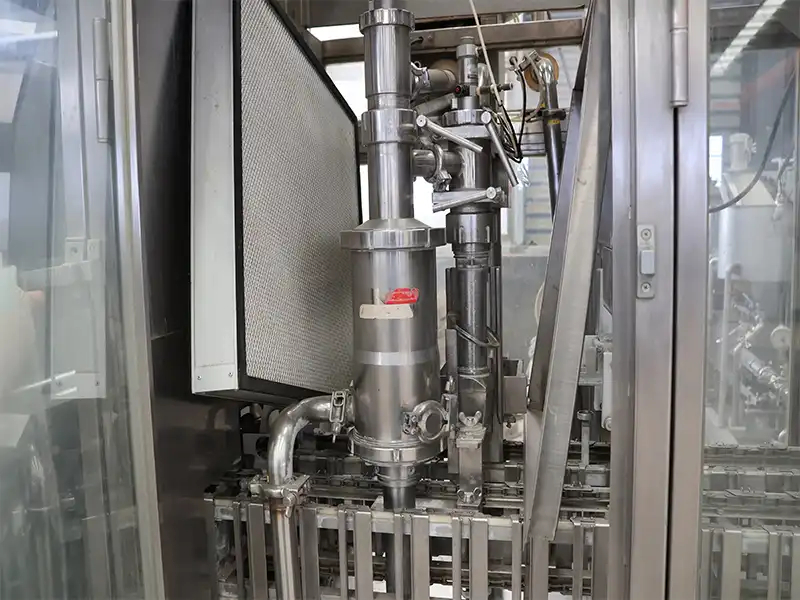

Filling unit accurately inject liquid food into the formed paper boxes, adaptable to different capacity specifications.
Sealing and Coding Unit completes the folding of the top of the carton, perform heat sealing, and print production dates and other information on the box body.

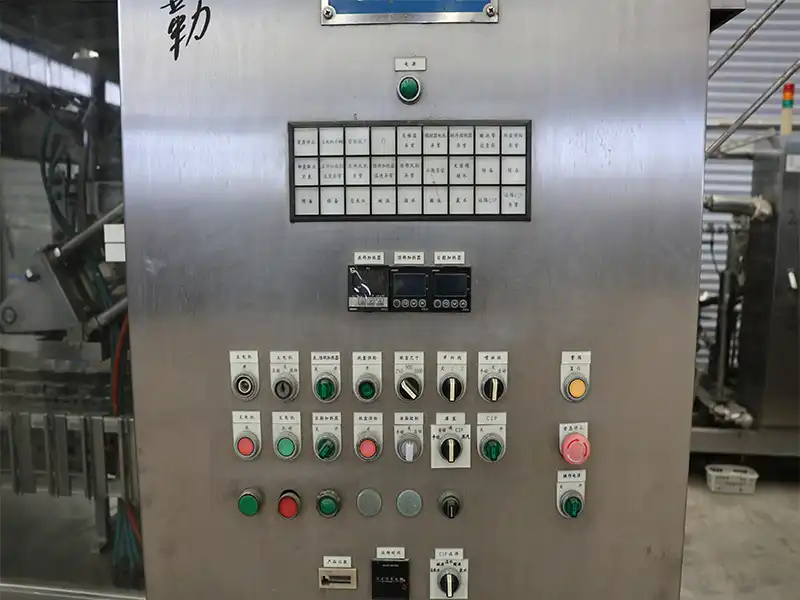

Electrical Control Unit controls the operation logic, speed adjustment and fault alarm of the entire machine.
Power and Transmission Unit provides power and precise synchronization of movements for each actuator.
